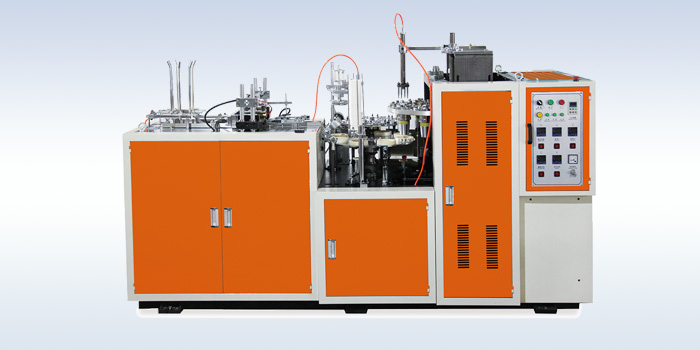

ZB Automatic Paper Cup Forming Machine is the automatic environmental machine with multi-running positions. This machine runs a whole procedure of paper-feeding, cup-fan-wall sealing, oiling, bottom punching, heating, rolling, rimming, rounding and tripping. It is an idea equipment for producing drinking cups,market cups, coffee cups, advertising cups , etc. It is widely used for hot drink and beverage.
If you need double pe coated paper cups or paper gram higher 250kg, we recommend you to use Ultrasonic paper cup machine, it can produce single pe coated paper cups and double pe coated paper cups.
Specifications：
| Model | ZB |
| Cup size | 3-12oz(different size mold exchanged) |
| Suitable paper material | 150-380g/m²（single or double PE-coated paper) |
| Capacity | 45-55pcs/min |
| Power source | 220V/380V 50HZ（please inform us your power in advanced） |
| Total power | 4KW |
| Weight | 1500KG |
| Package size | 2500 x 1400 x 1700 mm |
| Working Air Source | Air pressure 0.4Mpa; Air out-put:0.6m3/min |
