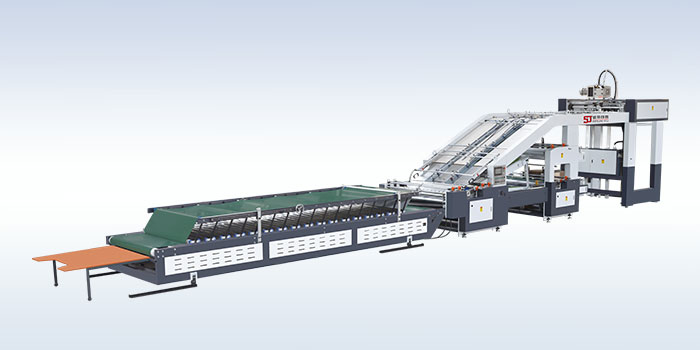

SJ-FMB1450A Full Automatic Multilayer Flute Laminator


    Features:

      • Key Points:
    • Two in One or Three in One structure: It can laminate up to 5 layers paper board less than 10mm.
    • High precision: with the help of chasing lay and Synchronous slot design, the machine can achieve a precision as ±1.5mm.
    • Suit to both big and small size paper no need to do the readjustment.
      • General Introduction:
    • SJ-FMB series fully automatic multilayer flute laminator is consists of automatic face paper lifting section, face paper conveying section, conveying section, double bottom paper positioning section, cyclic gluing section and pressing section. It suits to laminate the printed paper to the corrugated board or cardboard which is thicker than 350gsm, with features of high precision and high speed. It is the ideal laminating machine for all kinds of packaging company domestic and overseas.


    Specifications:

    Name

    Requirement

    Requirement

    Requirement

    Model

    SJ-FMB1300

    SJ-FMB1450

    SJ-FMB1600

    Max. Paper size(W*L)

    1300*1300 mm

    1450*1300 mm

    1600*1300 mm

    Min. Paper size(W*L)

    500*500 mm

    600*600 mm

    Face paper thickness

    250-500 g/m2(standard paper board)

    Flatness requirements on face paper

    Curve height should less than 0.2 times of paper thickness

    Requirements on film

     Film ends should be less than 2 times of paper thickness

    Bottom paper

    A,B,C,E,F flute

    Flatness requirements on bottom paper

    Within 15/1000 mm

    Corrugated paper deflection

    Curve height should less than 0.2 times of  paper thickness, deflection should be less than 2times of flute height

    Requirements on the height of corrugated flute

    If there is difference between tow flute, difference should be within 1/20 of the corrugated height

    Diagonal requirement

    Less than 3/1000 mm

    Size requirement on face paper and bottom paper

    Size of face paper should be 8 mm larger than that of the bottom paper

    Laminate layers

    Face paper+corrugated paper=3 layers or Face paper+corrugated paper+corrugated paper=5 layers(total thickness less than 10 mm)

    Precision

    ±1.5mm(according to the paper quality)

    Speed

    100 m/m(theoretical value )

    90 m/m(theoretical value)

    Production efficiency

    0-6000 sheets/h

    0-5000 sheets/h

    Height of face paper pile

    1600 mm

    Face paper table capacity

    1500 KG

    Height of bottom paper pile

    400 mm

    Total Power

    33 KW

    34 KW

    Voltage

    Three phase 380V

    Efficient pressing length

    6000 mm

    Conveying height

    250 mm

    Adhesive medium

    Corn starch glue

    Collecting table size(W*L)

    1300*1300 mm

    1450*1300 mm

    1600*1300 mm

    Collecting table capacity

    300 KG

    Dimension(L*W*H)

    22000*2200*2500 mm(Subject to machine)

    22000*2400*2500 mm(Subject to machine)

    22000*2550*2500 mm(Subject to machine)

    Machine Weight

    About 7.5 T(Subject to machine)

    About 7.8 T(Subject to machine)

    About 8 T(Subject to machine)
