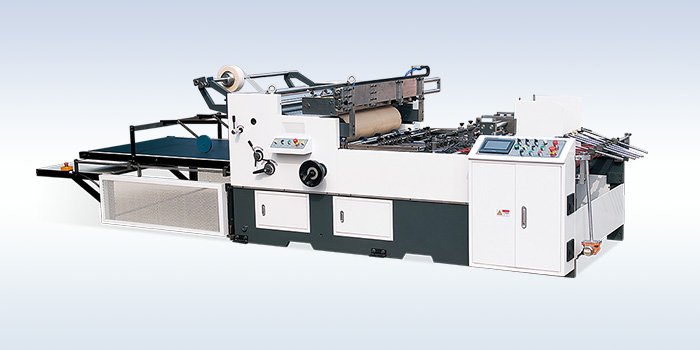

STC-1080/1450 Automatic Window Patching Machine


    Features:
    ●STC-1080/1450 automatic window machines are special equipments for carton box, color box window lamination; they are the most advanced models in the domestic market. Perfect personalization design philosophy ensures that the machines have the feature of high efficiency, high-precision, high stability and easy operation. These machines are available for both cardboard and corrugated cardboard, they adopt non-stop bottom feeder with side lay registration, Flexible version module of glue print, stable and accurate diaphragm incision and cross cutting cropped to achieve tissue boxes, gift boxes, toy boxes, shirt boxes, milk cartons and other window film lamination.

    Specifications:

    Model 1080A 1080B 1080C 1080D 1450A 1450B
    Max. paper size (mm) 1080×650 1080×750 460×650 460×750 1450×1100 680×1100
    Min. paper size (mm) 80×160 80×260 80×160 80×260 100×180 100×180
    Max. window size (mm) 780×600 780×600 450×600 450×600 950×1000 650×1000
    Min. window size (mm) 40×40 40×40 40×40 40×40 40×40 40×40
    Film thickness (mm) 0.05-0.20 0.05-0.20 0.05-0.20 0.05-0.20 0.05-0.20 0.05-0.20
    Cardboard(g/m²) 200-1000 200-1000 200-1000 200-1000 200-1000 200-1000
    Corrugated paper(mm) ≤3.0 ≤3.0 ≤3.0 ≤3.0 ≤5.0 ≤5.0
    Max working speed(s/h) 7000 7000 12000 12000 7000 12000
    Total power(kw) 10 10 10 10 12 12
    Overall dimensions(mm) 4958×1960×1600 4958×1960×1600 4958×1960×1600 4958×1960×1600 6500×2300×1688 6500×2300×1688
    Total weight(T) 3 3 3 3 3.8 3.8

    The technical parameters of 1080C、1080D、1450B are for double track ,1450 series are customized according to customers’ required.
