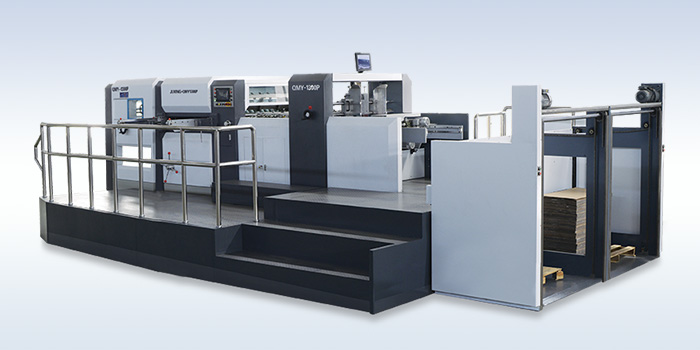

QMY1200P/1300P/1500PAutomatic Die-cutting And Creasing Machine (Front Lead Feedingwith Stripping Unit)


    Features:
    ●Machine adopts the most advanced front-lead feeding structure, which can effectively prevent and reduce damages to the surface of printed sheet.
    ●The machine is a perfect combination of the motion control system with servo motor, which ensures the operation more smoothly and reliable.
    ●The machine is equipped with stripping part which can remove the waste on three edges and holes in the middle of the sheet after die-cutting(Stripping part is optional)
    ●Adopt imported electrical components ?stable and reliable. Using variable frequency speed regulation system to realize stepless speed change.

    Specifications:

    Model QMY1200P QMY1300P QMY1500P
    Max. Paper Size 1200×780mm 1300×960mm 1500×1100mm
    Min. Paper Size 350×350mm 400×400mm 500×400mm
    Max. Cutting Size 1180×760mm 1280×940mm 1480×1080mm
    Weight 18000kg 19000kg 21000kg
    Total Power 32.5kw 32.5kw 36.5kw
    Speed 0-5000p/hr 0-4600p/hr 0-4000p/hr
    Sheet Thickness 1-7mm 1-7mm 1-7mm
    Die-cutting Pressure 300T 300T 300T
    Die-cutting Precision ±0.5mm ±0.5mm ±0.5mm
    Dimensions 8600X4000X2350mm 9100X4250X2345mm 9600X4700X2400mm
    Power Supply 3~380V(50Hz) 3~380V(50Hz) 3~380V(50Hz)
