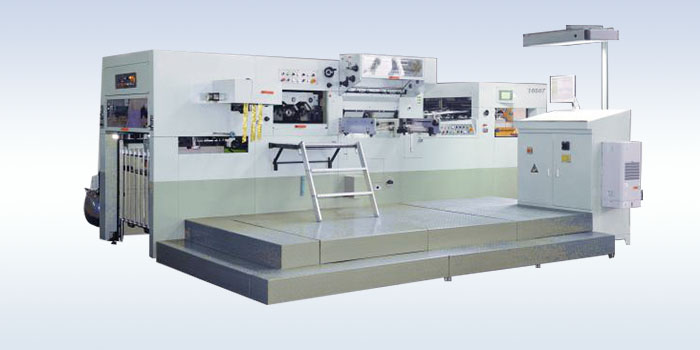

HT1050T Automatic Foil Stamping and Die-cutting Machine


    Features:
    ●Automatic foil stamping and die cutting machine is mainly used for the die cutting, creasing, foil stamping, cold and hot embossing of cigarette box, drug box, wine box and label in the packing and decorating industries.
    ●This kind of machine is a new generation of foil stamping series on the basis of M1020, its incorporated with fully automatic feeding, die cutting, stamping, delivering foil, delivering sheet, up-press, down-press, leap step, counting, heating, pre-heating, obstacle indicating, checking and measuring. It has the features of easy operating, reliability, high speed, press and precision.

    Specifications:
    Max. Sheet Feeding Size 1050×750mm
    Min. Sheet Feeding Size 400×350mm
    Max. Die-cutting Size 1040×740mm
    Max. Foil Stamping Size 1020×710mm
    Thickness of Material     0.1-1.5forcardboardmm
    ≤4for Corrugated papermm
    ≤1.5forPVCmm
    Max. Pressure 3000KN
    Highest Speed for Die-cutting 7000s/h
    Highest Speed for foil stamping 6500s/h
    Die-cutting Accuracy ±0.09mm
    Foil Stamping Accuracy ±0.01mm
    Gripper Range 7-14mm
    Number of axis for Feeding Foil 3(Longitudinal)+2(Horizontal)
    Heating zone 16
    Temperature 50-199℃
    Max. Feeding pile Height 1480mm
    Max. Delivery Pile Height 1180mm
    Dimensions 5970×4545×2230mm
    Weight 17T
