Automatic Flip Flop Machine

II. Specification & Board Sample:

a)Specifications

a) Machine Introduce

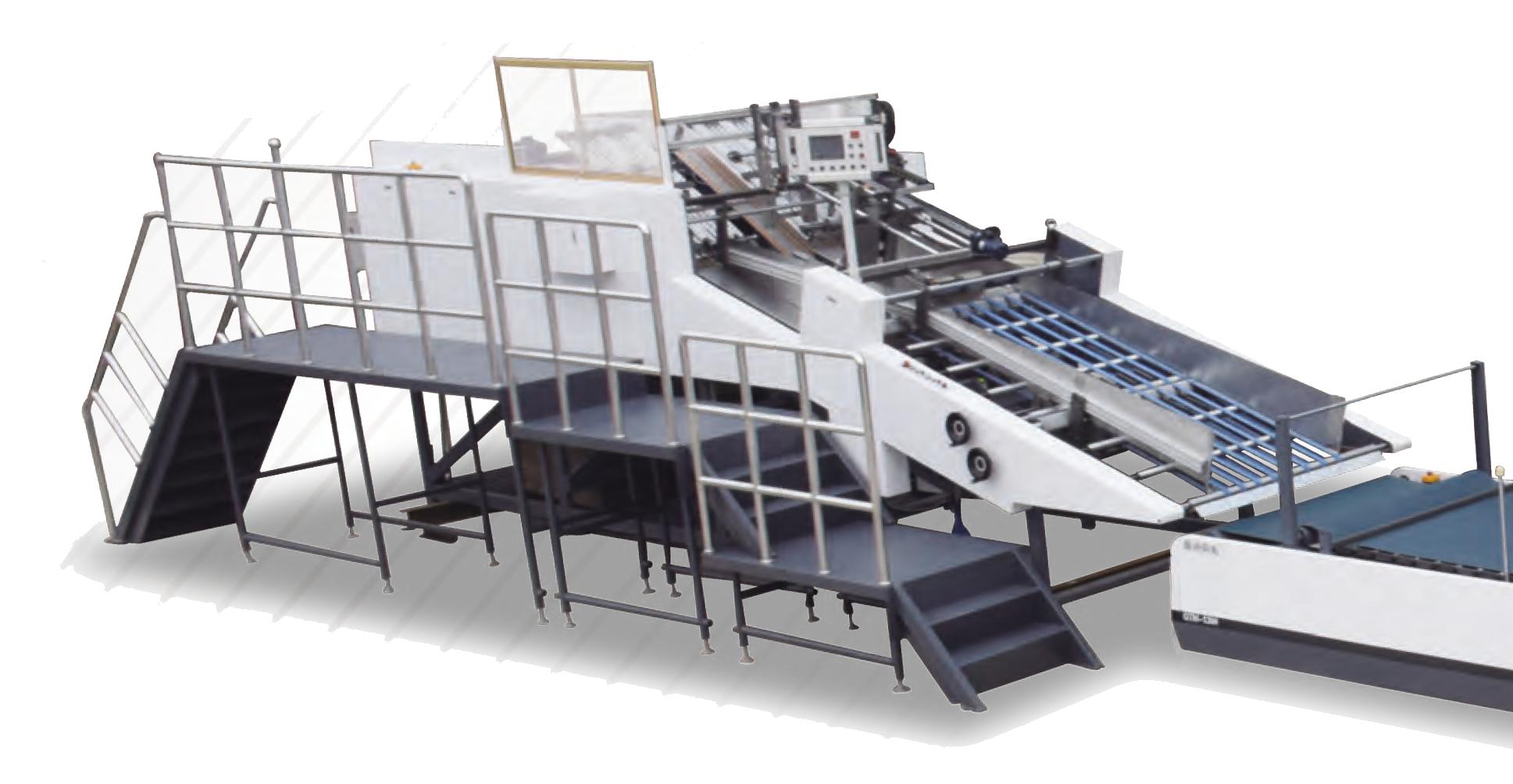

The machine adopts servo transmitting with the features of quick response and accurate control. It can realize a non-stop running a speed of 10000 sheets/hour with 7 mm thickness of 5 ply paper sheet.

b) Key features:

l Accelerating unit :This main function of this part is to separate the sheets from the conveyor by accelerating the conveying speed so that it can go to the flip-flop easily.

l Unique turning structure of this machine can shorten the turning time, ensuring the stable running at high speed.

l Aligning device together with the main and vice collecting system makes the machine run without stopping when pile is delivered out. It not only ensures a neat sheet pile but also improves the production efficiency greatly.

IV. Parts Introduction:

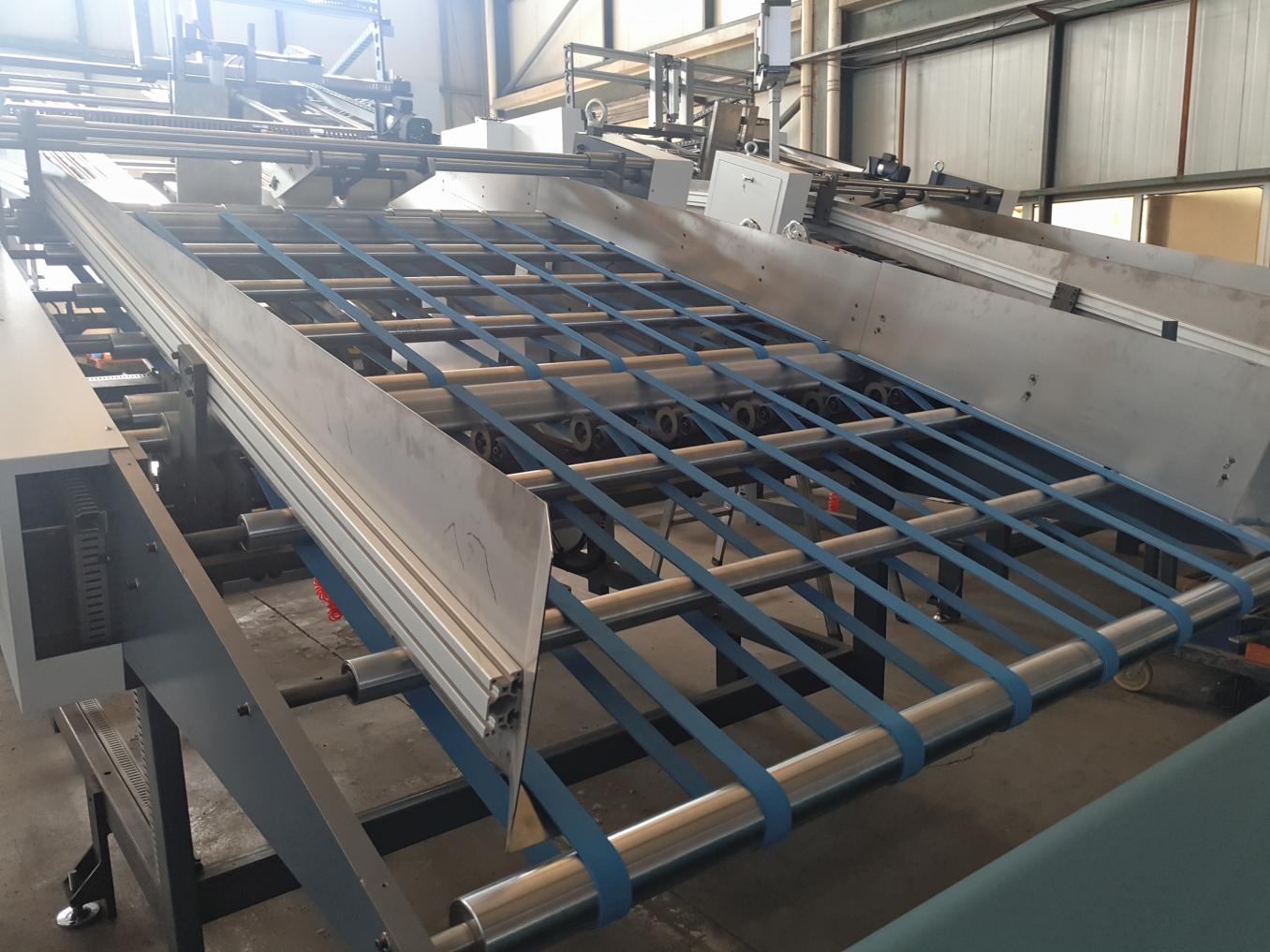

a) Conveying Belts

l The sheet send to the non-slip belt of the flip-flop machine, and aligning by side lay. The pressing wheel speed is faster than the belts, it can help the sheets to the separated device easily.

l When change the size of conveying unit, the belts can be moved automatically.

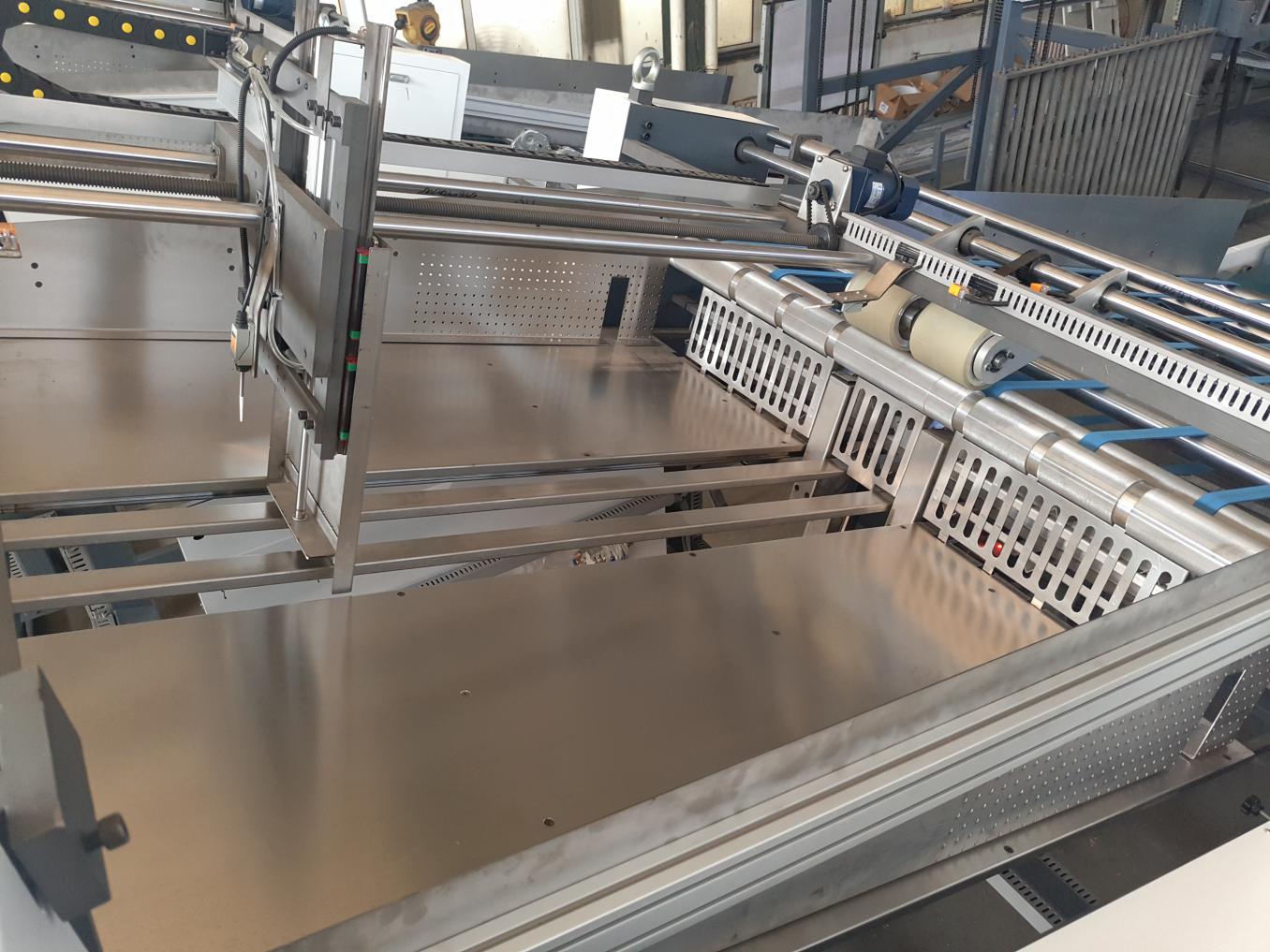

b) Stacking Unit

l The width adjustment of side lay is coincident with the conveying unit, make the order change easy and fast.

l Adjustable photoelectric and reflect mirror is convenient to stacking height adjusting.

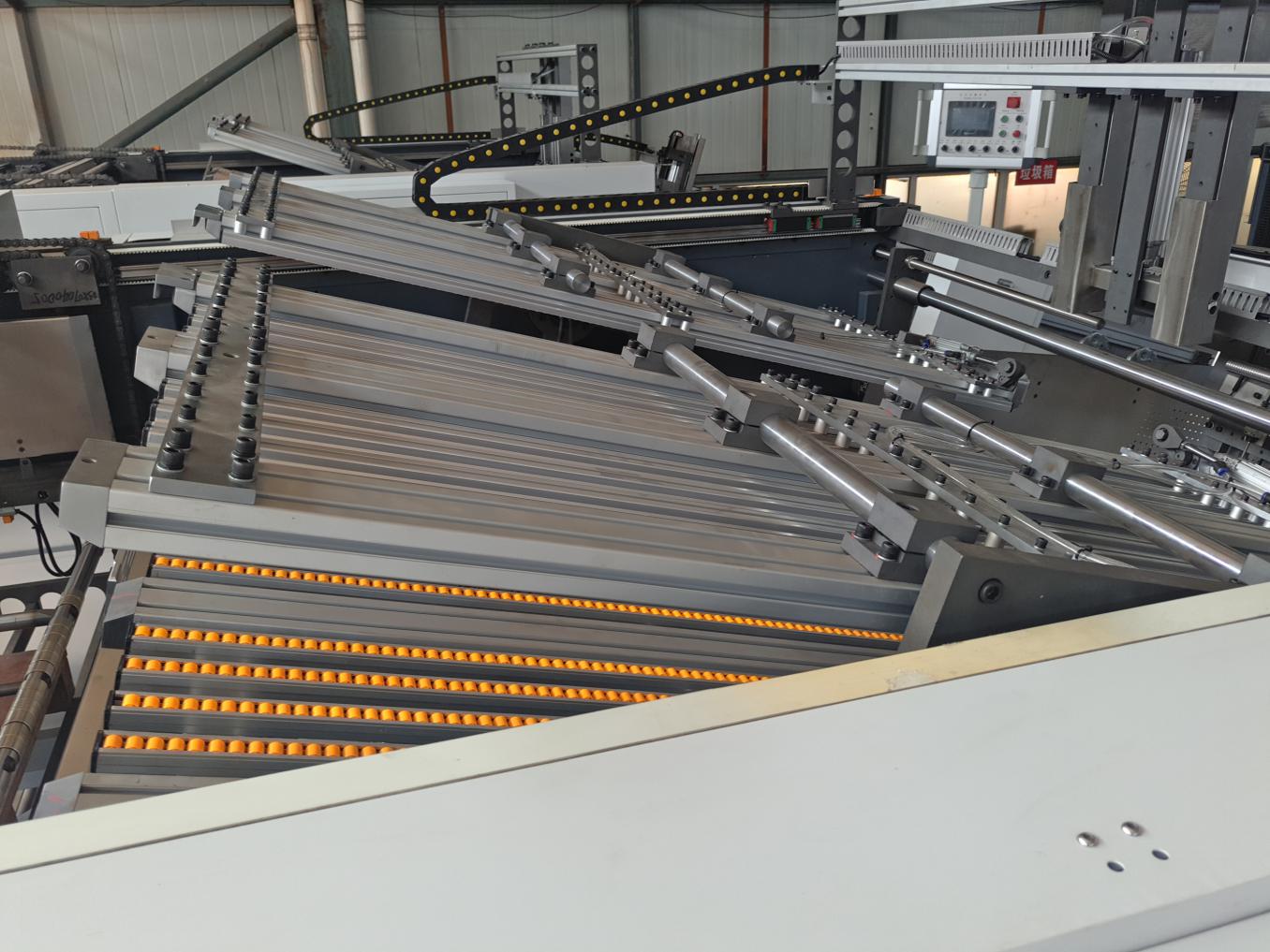

c) Flip-flop Unit

l Servo motor control the reversing function, it can increase the total speed of the machine.

l The sheet pushing device is driven by servo motor, so its speed is curvilinear to protect the sheet pile from damaging.

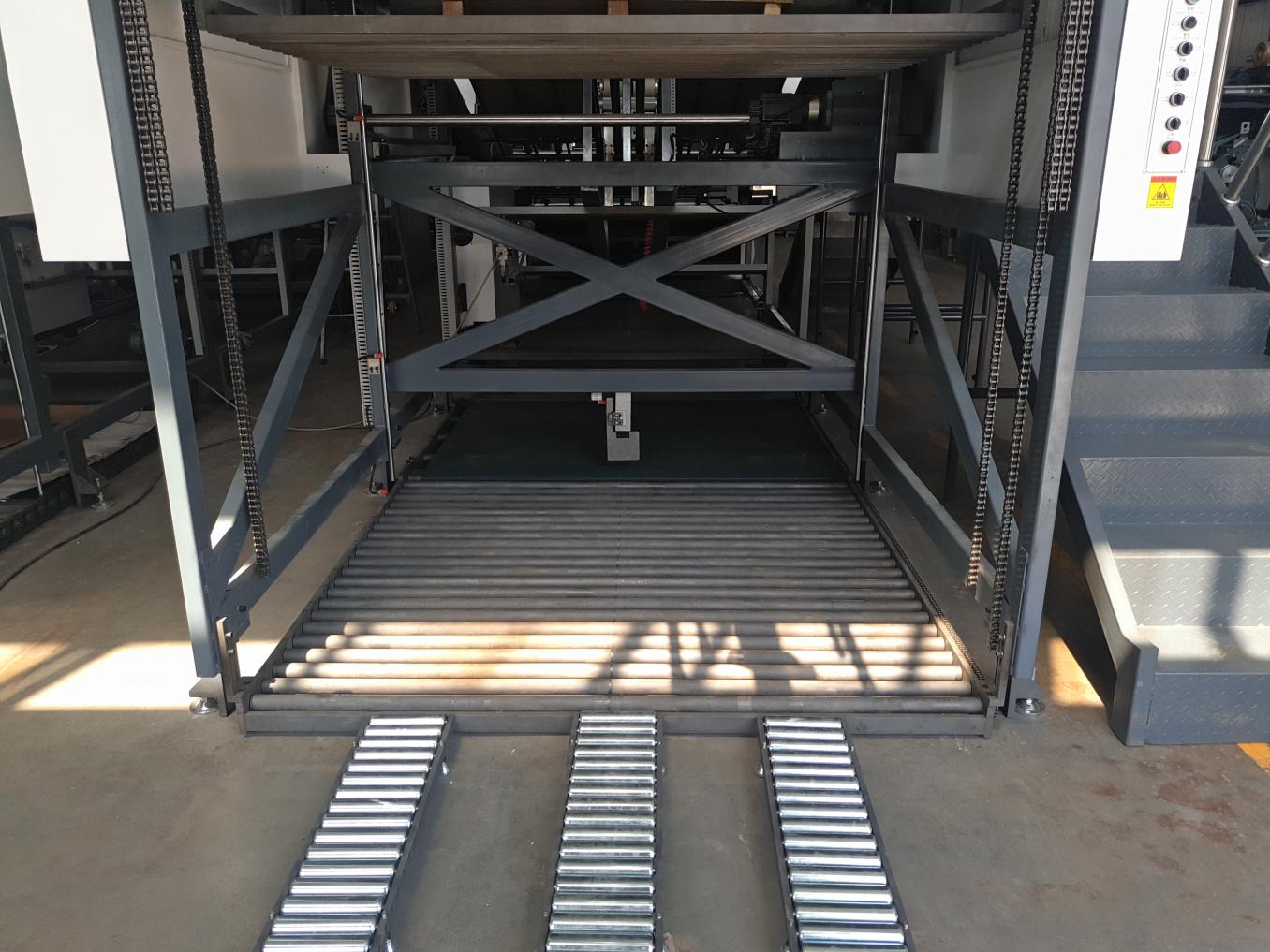

d) Delivery Unit

l It is equipped with special vice delivery structure which uses lifting chains and rollers to move forward and backward,to realize non-stop collecting.

l Pneumatic cylinder aligning the four sides of the sheet pile to make the collection tidy.

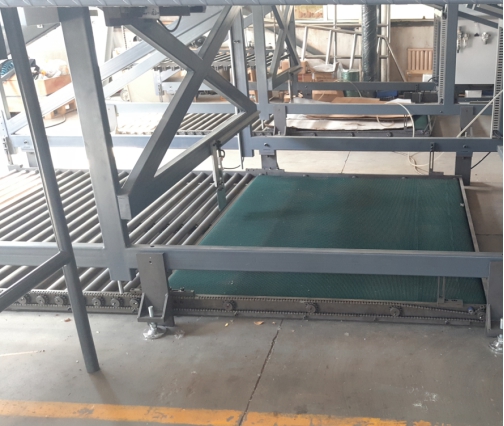

e) Pallet Loading

l Pre-load the sheet pile pallet to achieve non-stop working.

g) Pallet Output

l The motor output the sheet pile automatically.
