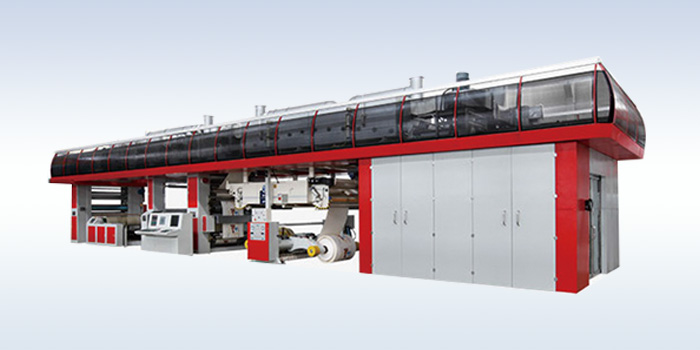

E-BOSS CI Press for Preprinting on Corrugate Carton


    E-Boss is a CI flexo press with most advanced technology mainly for preprinting on corrugate carton. With a better printing effect and low production cost, the press shall substitute the tranditional production method for corrugated carton. Integrating with the Siemens control and drive system, the press is featured with cantilever sleeve quick change, pre-register function, job management, automatic wash system, and CE certificate.

    Features and characters:

    ●Siemens control and servo drive system
    ●Schneider low voltage electrical system
    ●Cantilever structure for anilox sleeve and cylinder
    ●Central drum with constant temperature control system
    ●Close chamber doctor blade, reliable and easy for change
    ●Non-stop unwinder / rewinder with double working stations
    ●Zero-tail splice unit
    ●Water varnish/UV varnish unit
    ●Job management system
    ●Easy operation pre-register system
    ●Pressure servo control and pre-adjustment system
    ●Adjustable drying system
    ●Ink control and auto wash system
    ●Printing defection inspection system
    ●System fault monitoring system
    ●Remote diagnosis and maintenance system
    *Some of functions are optional
    *Rights reverved for any parameters modification

    Specifications:

    Item Values
    Web material paper (100-350g/m2)
    Web width 800-1700mm
    Colors 6 +1 varnishing
    Printing repeat length 700 - 1400mm
    Max. speed 300m/min
    Max. unwind/rewind diameter 1500mm
    Heating drying syste gas heating system 1500mm
    Machine size (L×W×H) 23m×5.5m×6.4m

    *The parameters above are for the standard machine, and they could be designed to meet custom is requirements.
