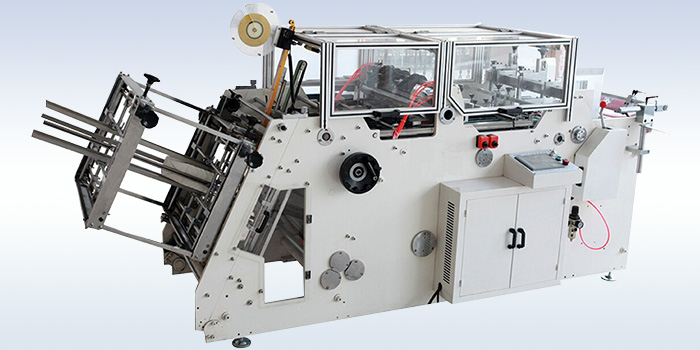

HBJ-D800 Automatic Paper Carton Erecting Forming Machine


    Function:

    HBJ-D is an ideal choice to produce hamburger boxes,chips boxes,takeout container,etc.It adopts micro-computer,PLC,alternating current frequency converter ,the vacuum-sucking paper feeding,auto gluing,automatic paper tape counting,chain drive.All of these main parts and electric control system adopts imported brand to guarantee steady working,precise positioning,smooth running,safety and reliability operation

    Specifications:

    Model HBJ-D800
    Production capacity 60-160pcs/min
    Suitable Material 160-600g/m2 card paper corrugating:1.5mm
    Length 100-450mm,degree: 5°-40°
    Width 100-600mm
    Height 15-200mm
    Power Supply 160-600g/m² card paper,corrugating:1.5mm
    Total Power 5.5KW
    Total Weight 2.2T
    Overall Dimension 3600 x1400 x 1600 mm
    Power source 380V 50HZ

    Design and Specification are subject to change without notice, photos for reference only.
