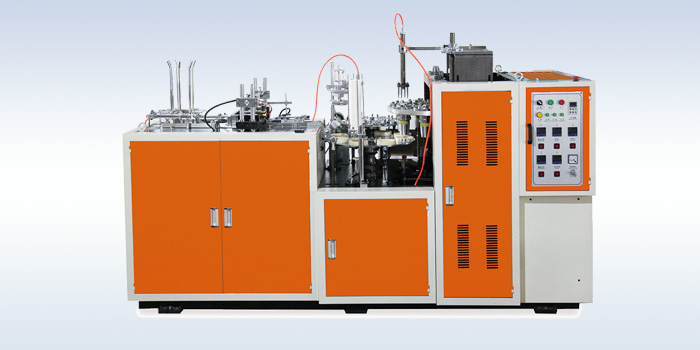

ZB Automatic Paper Cup Forming Machine


    Function:

    ZB Automatic Paper Cup Forming Machine is the automatic environmental machine with multi-running positions. This machine runs a whole procedure of paper-feeding, cup-fan-wall sealing, oiling, bottom punching, heating, rolling, rimming, rounding and tripping. It is an idea equipment for producing drinking cups,market cups, coffee cups, advertising cups , etc. It is widely used for hot drink and beverage.
    If you need double pe coated paper cups or paper gram higher 250kg, we recommend you to use Ultrasonic paper cup machine, it can produce single pe coated paper cups and double pe coated paper cups.

    Specifications:

    Model ZB
    Cup size 3-12oz(different size mold exchanged)
    Suitable paper material 150-380g/m²(single or double PE-coated paper)
    Capacity 45-55pcs/min
    Power source 220V/380V 50HZ(please inform us your power in advanced)
    Total power 4KW
    Weight 1500KG
    Package size 2500 x 1400 x 1700 mm
    Working Air Source Air pressure 0.4Mpa; Air out-put:0.6m3/min

    Design and Specification are subject to change without notice, photos for reference only.
