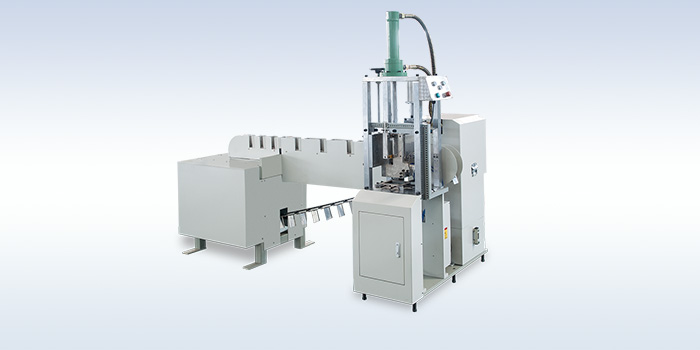

QJ1020 Automatic Card Corner Cutting Machine


    ●Accessory equipment of FQ1020, it accomplished fully-auto feeding and corner cutting.
    ●Controlled by PLC system ensures auto die-cutting of playing cards(single and double).
    ●Double-sides jogger ensures the high precision of only 0.75mm waste edge.
    ●Safety protective device is complete, ensures the safety of the operator and the machine .
    ●The hydraulic components are supplied the domestic famous brand with long life .
    ●Supplied WEG brand oil pump, SMC pneumatic components, ensure the stability under the high speed .
    ●The waste edge can be take away centered, to keep clear sites.

    Specifications: Specifications:

    Model QJ1020
    Max. Speed 1500 times/h
    Power Supply 3p 380v AC 50hz
    Capacity 2.2kw
    Dimension(L×W×H) 1300×800×1830mm
    Net weight 0.45t
